同步帶輪型號

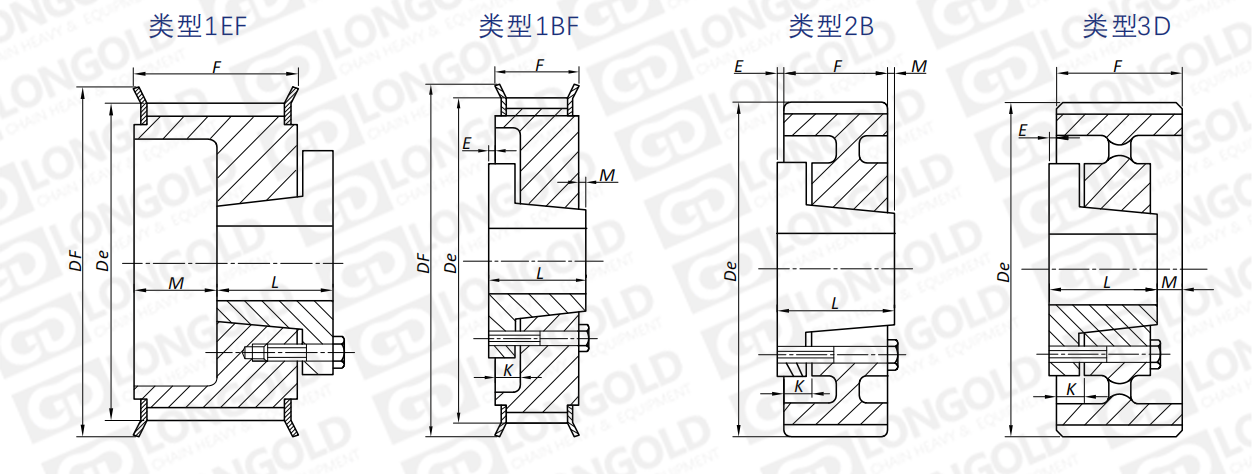

類型

錐套
型號

齒數(shù)

外圓

直徑

節(jié)距圓

直徑

擋圈

直徑

齒寬

E

K

L

M

Dp

De

DF

F

inch

inch

inch

inch

inch

inch

inch

inch

L100-JA18T-F

1EF

JA

18.0

2.1

2.1

2  7/16

1  1/4

1/2

-

1

5/8

L100-JA20T-F

1EF

JA

20.0

2.4

2.4

2  5/8

1  1/4

1/2

-

1

5/8

L100-JA22T-F

1EF

JA

22.0

2.6

2.6

2  7/8

1  1/4

1/2

-

1

5/8

L100-SH24T-F

1EF

SH

24.0

2.9

2.8

3  1/8

1  1/4

21/32

-

1  5/16

1/2

L100-SH26T-F

1EF

SH

26.0

3.1

3.1

3  3/8

1  1/4

21/32

-

1  5/16

1/2

L100-SH28T-F

1EF

SH

28.0

3.3

3.3

3  5/8

1  1/4

21/32

-

1  5/16

1/2

L100-SDS30T-F

1EF

SDS

30.0

3.6

3.6

3 13/16

1  1/4

21/32

-

1  5/16

1/2

L100-SDS32T-F

1EF

SDS

32.0

3.8

3.8

4  1/16

1  1/4

21/32

-

1  5/16

1/2

L100-SDS36T-F

1BF

SDS

36.0

4.3

4.3

4 17/32

1  1/4

5/32

1/2

1  5/16

-

L100-SDS40T-F

1BF

SDS

40.0

4.8

4.7

5

1  1/4

5/32

1/2

1  5/16

-

L100-SDS44T-F

1BF

SDS

44.0

5.3

5.2

5 31/64

1  1/4

5/32

1/2

1  5/16

-

L100-SDS48T-F

1BF

SDS

48.0

5.7

5.7

6

1  1/4

5/32

1/2

1  5/16

-

L100-SD60T

2B

SD

60.0

7.2

7.1

-

1  1/4

21/32

-

1 13/16

-

L100-SD72T

3D

SD

72.0

8.6

8.6

-

1  1/4

21/32

-

1 13/16

-

L100-SD84T

3D

SD

84.0

10.0

10.0

-

1  1/4

21/32

-

1 13/16

-

L100-SD96T

3D

SD

96.0

11.5

11.4

-

1  1/4

21/32

-

1 13/16

-

L100-SD120T

3D

SD

120.0

14.3

14.3

-

1  1/4

21/32

-

1 13/16

-
